Series FN
Features include:
- Finger-safe terminals designed to accept bare wire, ferrules, spade or ring lugs
- Enclosed coils 1000-5000 VA to protect against moisture, dirt, dust and industrial contaminants
- Primary Voltage 230/460/575
- Secondary Voltage 95/115
- Frequency 50/60 Hz
- Constructed with high quality silicon steel laminates
- Highest quality copper magnetic wire ensures efficient operation
- Labeled with complete wiring diagram
- Two parallel jumper links come standard with all transformers which can be wired for dual primary voltages
- Heavy duty steel mounting plate with slotted mounting feet for easy and flexible installation
- Mounting adapter for fuse blocks
- Fusing options available in kits or factory installed
- Meets or exceeds, UL, CE, CSA,
NEMA, ANSI,
and OSHA standards
FN SERIES
|
FN Series 1000 VA, 50/60 Hz | |
| PRI | SEC |
| 230/460/575 | 95/115 |
| Part # MPC2-1H1K0FNU | |
|
FN Series 1500 VA, 50/60 Hz | |
| PRI | SEC |
| 230/460/575 | 95/115 |
| Part # MPC2-1H1K5FNU | |
|
FN Series 2000 VA, 50/60 Hz | |
| PRI | SEC |
| 230/460/575 | 95/115 |
| Part # MPC2-1H2K0FNU | |
|
FN Series 3000 VA, 50/60 Hz | |
| PRI | SEC |
| 230/460/575 | 95/115 |
| Part # MPC2-3K0FNU*** | |
|
FN Series 5000 VA, 50/60 Hz | |
| PRI | SEC |
| 230/460/575 | 95/115 |
| Part # MPC2-1H5K0FNU*** | |
PDF Downloads
FN SERIES
PRI SEC
230/460/575
95/115
Image is a general representation of a typical MPC Transformer without fusing accessories or jumper links. Transformers 50VA - 350 VA have 4 terminals per side and units 500Va and higher have 6 terminals per side.

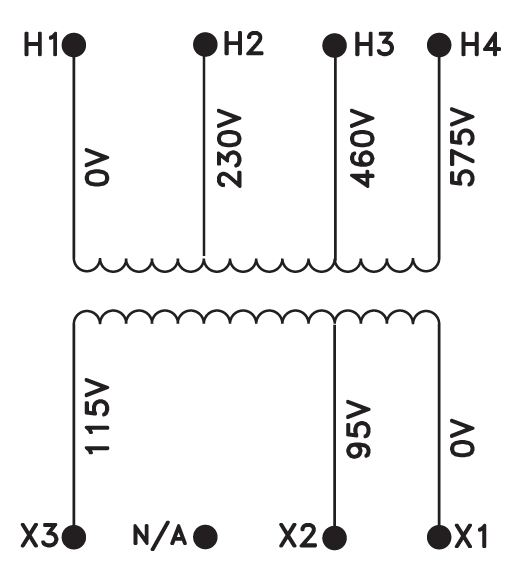

Wiring Diagram
| Approximate Dimensions and Weight | |||||||||
| Mounting Hole | Shipping | ||||||||
| VA Rating |
MPC Model # |
Max Depth (A) |
Max Width (B) |
Max Height (C) |
Mounting Depth (D) |
Mounting Depth (E) |
Depth | Width | Weight (lbs.) |
| 1,000 | MPC2-1H1K0FNU | 6.21 | 7.00 | 5.65 | 4.00 | 6.13 | 0.31 | 1.06 | 29.80 |
| 1,500 | MPC2-1H1K5FNU | 7.98 | 7.00 | 5.43 | 5.13 | 6.13 | 0.31 | 1.06 | 38.00 |
| 2,000 | MPC2-1H2K0FNU | 7.98 | 7.00 | 5.43 | 5.13 | 6.13 | 0.31 | 1.06 | 38.00 |
| 3,000 | MPC2-1H3K0FNU*** | 9.00 | 9.00 | 7.62 | 7.25 | 7.50 | 0.44 | 1.00 | 89.00 |
| 5,000 | MPC2-1H5K0FNU*** | 10.00 | 9.00 | 8.73 | 8.25 | 7.50 | 0.44 | 1.00 | 101.00 |
***This model is not available with the FO option (Consider F1) | |||||||||
| -Add end suffix for for fusing options | |||||||||
| -Add C to suffix for the covers | |||||||||
Fusing Options
Option FO
Option F1
Option F2
Option F3
Option F4
|
Add to (MPC Part #) |
MPC Part (Ordered Separately) |
Fusing Options |
| C | MCP2-ACC-PFBCVK | PRI Fuse Cover Kit with puller |
| C | MCP2-ACC-SFBCVK | Secondary Fuse Cover Kit |
| FO | MCP2-ACC-FOB | Kit Secondary Fuse Clips (45VA-750VA) |
| FO | MCP2-ACC-FOH | Kit Secondard Fuse Clips (1KVA-5KVA) |
| F1 | MCP2-ACC-F1 | Kit Sec Fuse Block 1 - Midget |
| F2 | MCP2-ACC-F2 | Kit PRI Fuse Block 2 - CC |
| F3 | MCP2-ACC-F3 | Kit Fuse Block 2 - CC & 1 - Midget |
| F4 | MCP2-ACC-F4 | Kit Fuse Block 2 - CC & Clips |
